New Ricardo Weifang 150kw Diesel Engine Generator Set Open Silent Type Diesel Generator

150kw diesel generator powered by weifang engine

150kw Power Generator Plant Diesel Engine

NO. GF-150-2

New Ricardo Weifang 150kw Diesel Engine Generator Set Open Silent Type Diesel Generator

Description:

New genuine Weichai original diesel generator, used original generator. Customizable Silent Box,base fuel tank!

Industry-Specific Attributes:

Model	Power(KW/KVA)	Current(A)	Diese engine	Cylinder	Bore*Stroke(MM)	Dimension(LWH）	Weight(KG)
GF-50	50KW/60.5KVA	90	WP4D66E200	4	105*130	19009001500	720
GF-80	80KW/100KVA	144	WP4D100E200	4	105*130	21009001500	800
GF-100	100KW/125KVA	180	WP4D108E200	4	105*130	21009001500	900
GF-120	120KW/150KVA	216	WP6D132E200	6	105*130	24009001500	1000
GF-140	140KW/175KVA	252	WP6D152E200	6	105*130	260010001500	1200
GF-150	150KW/187.5KVA	270	WP6D167E200	6	105*130	260010001500	1200
GF-160	180KW/225KVA	324	WP10D200E200	6	126*130	280012001600	1500
GF-200	200KW/250KVA	360	WP10D238E200	6	126*130	280012001600	1800
GF-250	250KW/312.5KVA	450	WP10D264E200	6	126*130	280012001600	2000
GF-280	280KW/350KVA	504	WP12D317E200	6	126*155	300012501600	2200
GF-300	300KW/375KVA	540	WP10D320E200	6	126*155	300012501600	2500
GF-350	350KW/437.5KVA	630	WP13D385E200	6	127*165	320013501700	2800
GF-380	380KW/475KVA	684	WP13D405E200	6	127*165	320013501700	3000
GF-400	400KW/500KVA	720	WP13D440E310	6	127*165	320013501750	3200
GF-450	450KW/562.5KVA	810	WHM6160SD518-5	6	160*200	360015001800	3800
GF-550	550KW/587.5KVA	990	WHM6160MD628-5	6	160*216	360015001800	4000
Weichai Baudouin Series
GF-400	400KW/500KVA	720	6M26D447E200	6	150*150	360015001800	3600
GF-450	450KW/562.5KVA	810	6M26D484E200	6	150*150	360015001800	4000
GF-520	520KW/650KVA	936	6M33D572E200	6	150*185	360015001800	4500
GF-550	550KW/687.5KVA	990	6M33D605E200	6	150*185	360015001850	5000
GF-720	720KW/900KVA	1296	12M26D792E200	12	150*150	450018502200	7000
GF-820	820KW/1025KVA	1476	12M26D902E200	12	150*150	450018502200	7500
GF-900	900KW/1125KVA	1620	12M26D968E200	12	150*150	460018502250	8000
GF-1000	1000KW/1250KVA	1800	12M33D1108E200	12	150*185	480020002400	8600
GF-1100	1100KW/1375KVA	1980	12M33D1210E200	12	150*185	480020002500	9000

Description

Diesel generator Details
Model	GF-150
Power	150(KW)
Frequency	50HZ
Voltage	400/230V
Rotating Speed	1500(KW/r/min)
Optional Type	Open/soundproof (can be customized)
Size	24008001400mm
Weight	1300kg

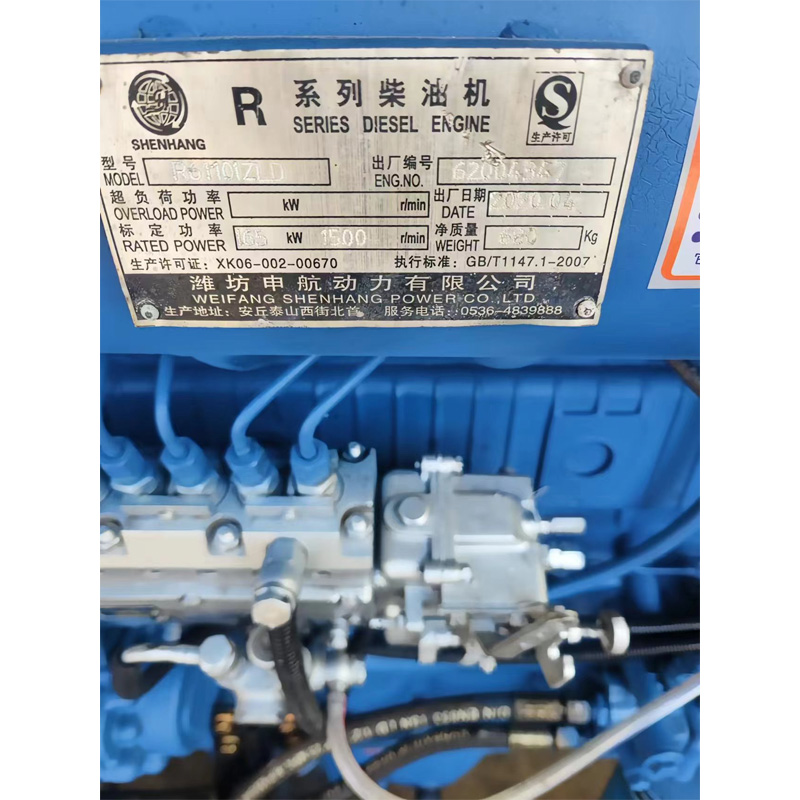

With Diesel Engine
Brand	R6110ZLD
Cylinders	4 in line arrangement
Bore*Stroke	110*135mm
Displacement	7.69L
Fuel Consumption at 100% Load	225g/kw.h
Engine Compression Ratio	16:01
With Altermator
Model	TX-150
Export	AC
Voltage adjust range	Three Phase Four Wire System
Insuation Grade	H
Protection Grade	IP21
