Original Cummins Penta Electric Plant Generator 400kw 500kVA Silent Diesel Generator Whole House Generator Cummins

NO. GF-400

Original Cummins Penta Electric Plant Generator 400kw 500kVA Silent Diesel Generator Whole House Generator Cummins

Description:

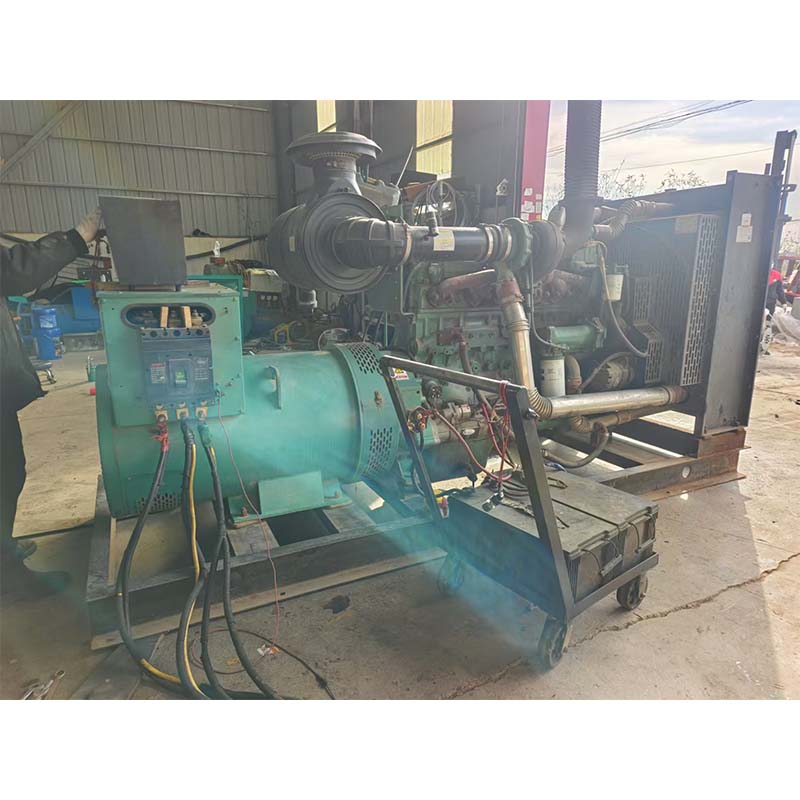

Used Cummins diesel generator with about 100 hours of operating hours original engine. Includes brand new basetank , muffler , control module , filters , radiator , alternator , starter , pt pump , engine plate, all hoses. Customizable Silent Box,base fuel tank!

Industry-Specific Attributes:

Model	Genset	Diesel engine				Dimensions&Weight
Model	Power(KW/KVA)	Engine model	Cylinder	Bore*Stroke(MM)	Displacement(L)	Dimensions(MM)	Weight(KG)
GF-10	20/25	4B3.9-G1	4	102*120	3.9	18007401300	800
GF-22	22/27.5	4B3.9-G12	4	102*120	3.9	18007401300	800
GF-30	30/37.5	4BT3.9-G1	4	102*120	3.9	19007401300	800
GF-40	40/50	4BTA3.9-G2	4	102*120	3.9	19007401300	800
GF-50	50/62.5	4BTA3.9-G2	4	102*120	3.9	19007401300	800
GF-60	60/75	4BTA3.9-G11	4	102*120	3.9	19007401300	800
GF-75	75/94	6BT5.9-G1	6	102*120	5.9	23508001300	1040
GF-80	80/100	4BTAA3.9-G3	4	102*120	3.9	23508001300	1040
GF-90	90/112.5	6BTA5.9-G2	6	102*120	5.9	23508001300	1060
GF-100	100/125	6BTAA5.9-G2	6	102*120	5.9	24508101345	1100
GF-120	120/150	6BTAA5.9-G12	6	102*120	5.9	24508101345	1100
GF-150	150/187.5	6CTA8.3-G1	6	114*135	8.3	24508401453	1450
GF-160	160/200	6CTAA8.3-G2	6	114*135	8.3	2530-970*1400	1556
GF-200	200/250	6LTAA8.9-G2	6	114*145	8.9	26509601632	2000
GF-250	250/312.5	6LTAA9.5-G3	6	114*145	9.5	285011001800	2500
GF-275	275/344	6LTAA9.5-G1	6	116.5*148	9.5	285011001800	2500
GF-300	300/375	6KTAA19–G6	6	130*163	13	330016001930	2500
GF-320	320/400	6ZTAA13-G2	6	130*163	13	330016001930	2800
GF-350	350/437.5	6ZTAA13-G4	6	130*163	13	330016001930	2800
GF-360	360/450	QSZ13-G2	6	130*163	13	320013701880	3000
GF-400	400/500	QSZ13-G3	6	130*163	13	320013701880	3000
GF-500	500/625	KTAA19-G6A	6	159*159	19	350016002100	3800

Description

Diesel generator Details
Model	NT855-G7A
Power	400(KW)
Frequency	50HZ
Voltage	400/230V
Rotating Speed	1500(KW/r/min)
Optional Type	Open/soundproof (can be customized)
Size	340013601930mm
Weight	3550kg
With Diesel Engine
Brand	Cummins NT855
Cylinders	6 in line arrangement
Bore*Stroke	159*159mm
Displacement	19L
Fuel Consumption at 100% Load	201g/kw.h
Engine Compression Ratio	17:01
With Altermator
Model	TFW-400
Export	AC
Voltage adjust range	Three Phase Four Wire System
Insuation Grade	H
Protection Grade	IP21
